Outdoor Flex Strips IP65 RGB

Outdoor Flex 20M RGB IP65 Remote Control

GTIN: 4058075848825 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Bright, robust and durable
Areas of application
  • Gardens and other outdoor areas
  • Suitable for indoor and outdoor applications (IP65)
Product features
  • Extendable up to 50 meters, max. 450 W
  • Protection class (strip): IP65
  • Protection class (power supply): IP44
  • RGB color control
Equipment / Accessories
  • Equipped with 1.5 m cable and plug
  • Cable reel for easy storage

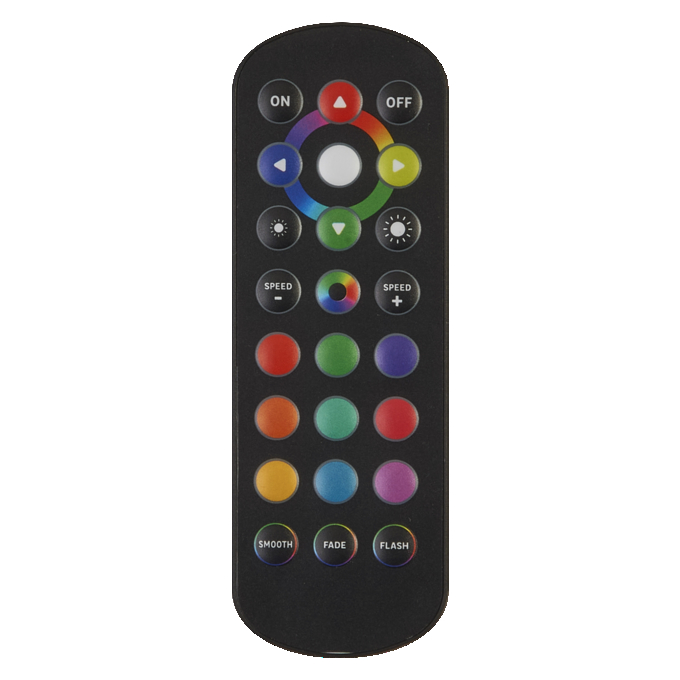

  • Remote control and battery included
  • Mounting accessories included
Safety advice
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
Electrical data
Nominal wattage 135.00 W
Nominal voltage 220…240 V
Type of current AC
Mains frequency 50…60 Hz
Power factor λ > 0.90
Photometrical data
Light color (designation) Red, Green, Blue
Standard deviation of color matching < 6 sdcm
Light technical data
Beam angle 120 °
Dimensions & Weight
Length 20000.00 mm
Width 16.00 mm
Height 8.00 mm
Product weight 4610.00 g
Colors & materials
Product color White
Body material Polyvinyl chloride (PVC)
Lifespan
Number of switching cycles 10000
Capabilities
Dimmable Yes
Lowest bending radius 70,0 mm
Self-adhesive No
Certificates & Standards
Standards CE
Protection class II
Type of protection IP65
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075848825 Folding box
1		 207 mm x 292 mm x 370 mm 4928.00 g 22.36 dm³
4058075848832 Shipping box
2		 440 mm x 315 mm x 398 mm 10708.00 g 55.16 dm³
User instruction / safety instructions
Outdoor Flex UI/SI
PDF (1.77 MB)
Declarations of conformity
Outdoor Flex RGB Declaration of Conformity CE
PDF (250.4 KB)

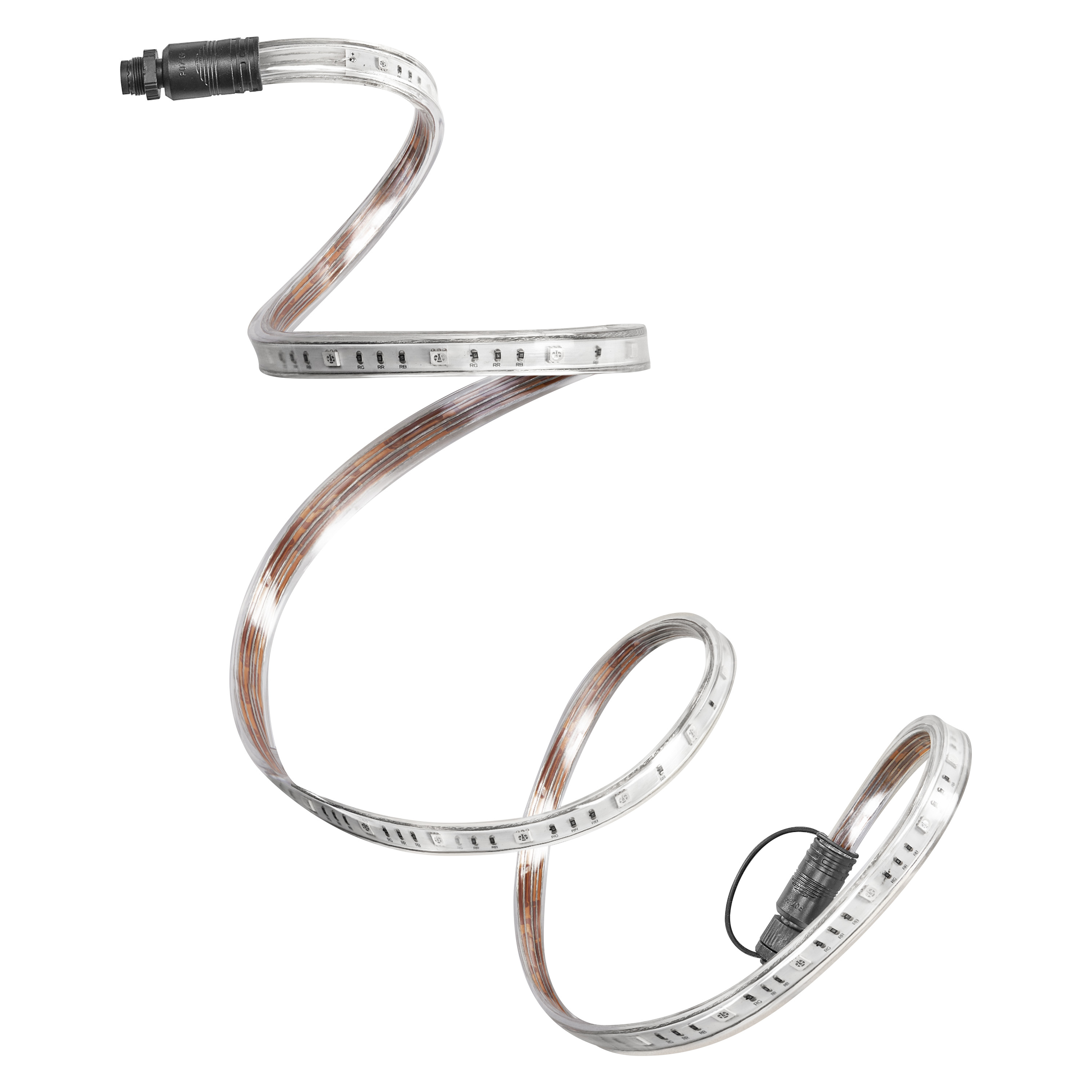

Product image: white background, upright
OUTDOOR FLEX RGB IP65 RC
JPG (2.33 MB)

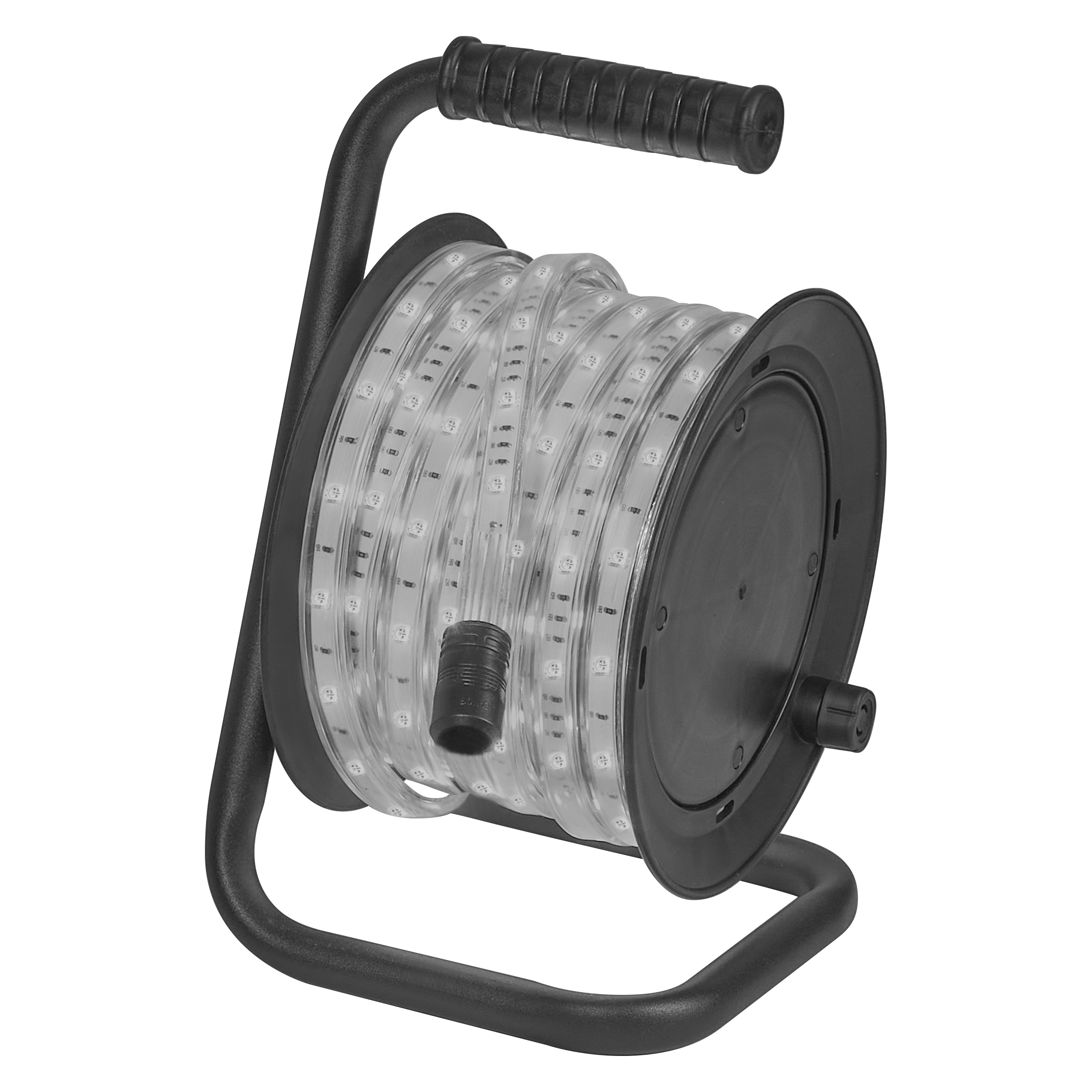

Product image: white background, upright
OUTDOOR FLEX
JPG (751.95 KB)

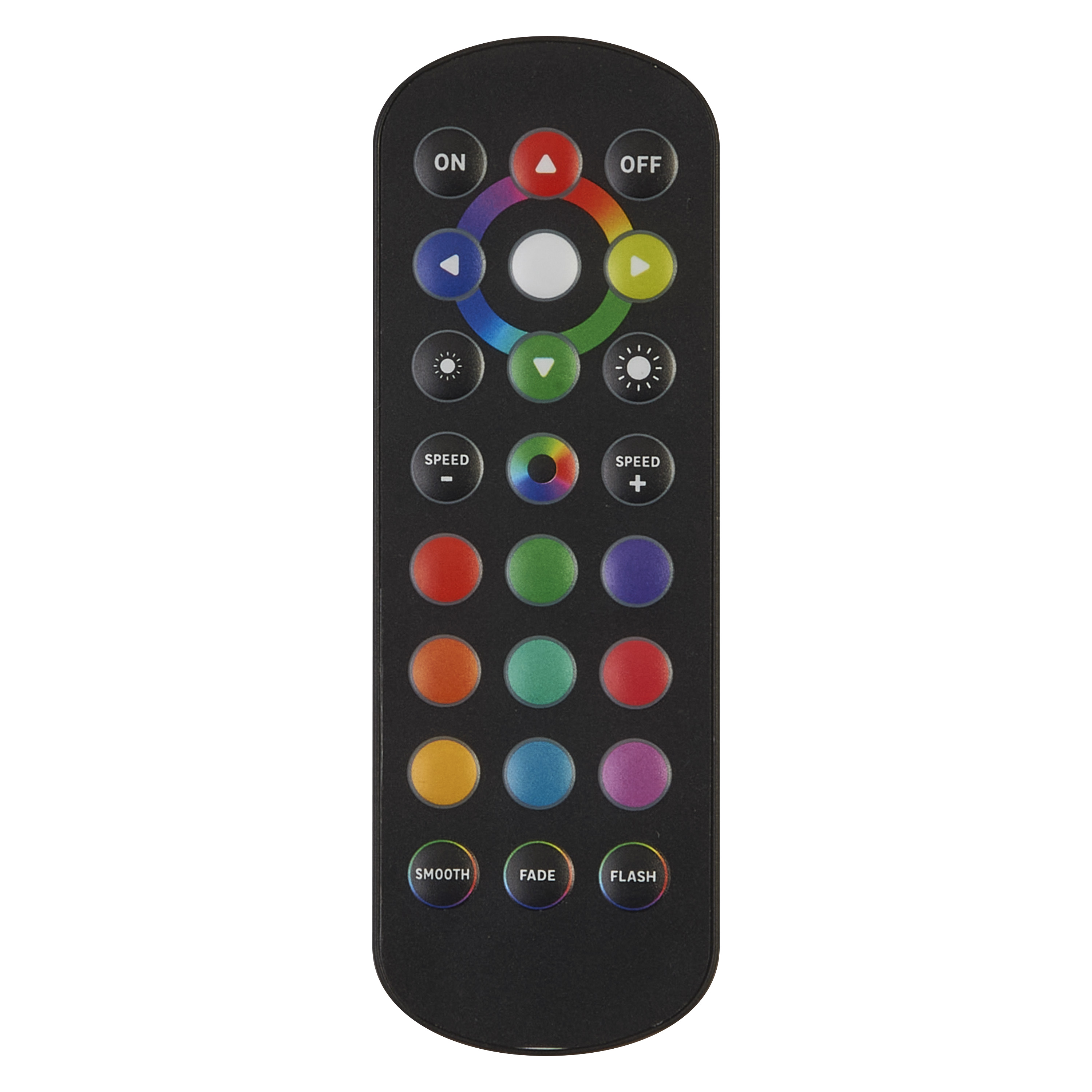

Product image: white background, upright, alternative image
OUTDOOR FLEX RGB IP65 RC
JPG (630.47 KB)

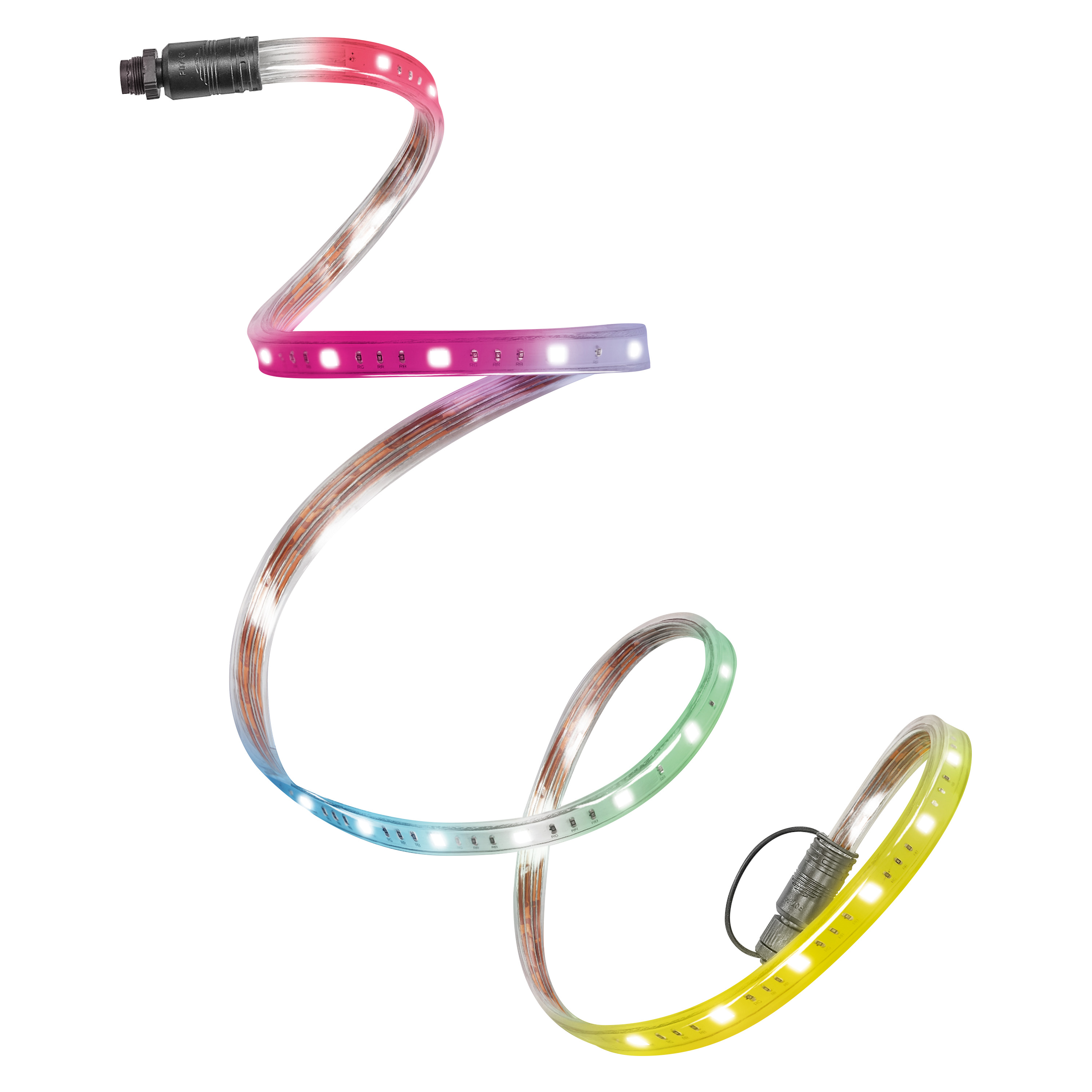

Product image: white background, upright, switched on
OUTDOOR FLEX RGB IP65 RC
JPG (2.34 MB)
Product line drawing with letters
OUTDOOR FLEX 20M RGB IP65 RC
SVG (1.54 MB)
Product line drawing with numbers
OUTDOOR FLEX 20M RGB IP65 RC
SVG (1.54 MB)
Product line drawing, front, no dimensions
OUTDOOR FLEX 20M RGB IP65 RC
SVG (1.5 MB)

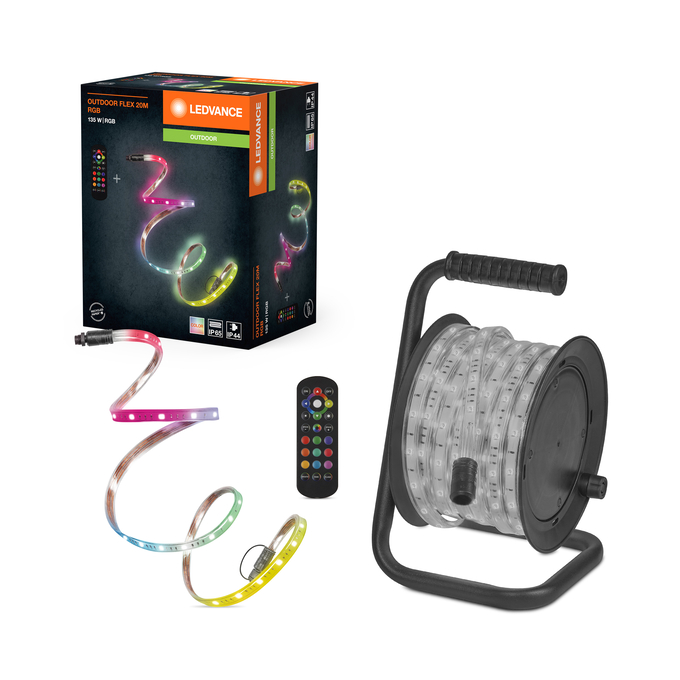

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OD FLEX 20M RGB IP65 RC
JPG (2.68 MB)
Packaging image, frontal
LUM FC OD FLEX 20M RGB IP65 RC
JPG (2.7 MB)
Packaging image, spacial
LUM FC OD FLEX 20M RGB IP65 RC
JPG (2.8 MB)

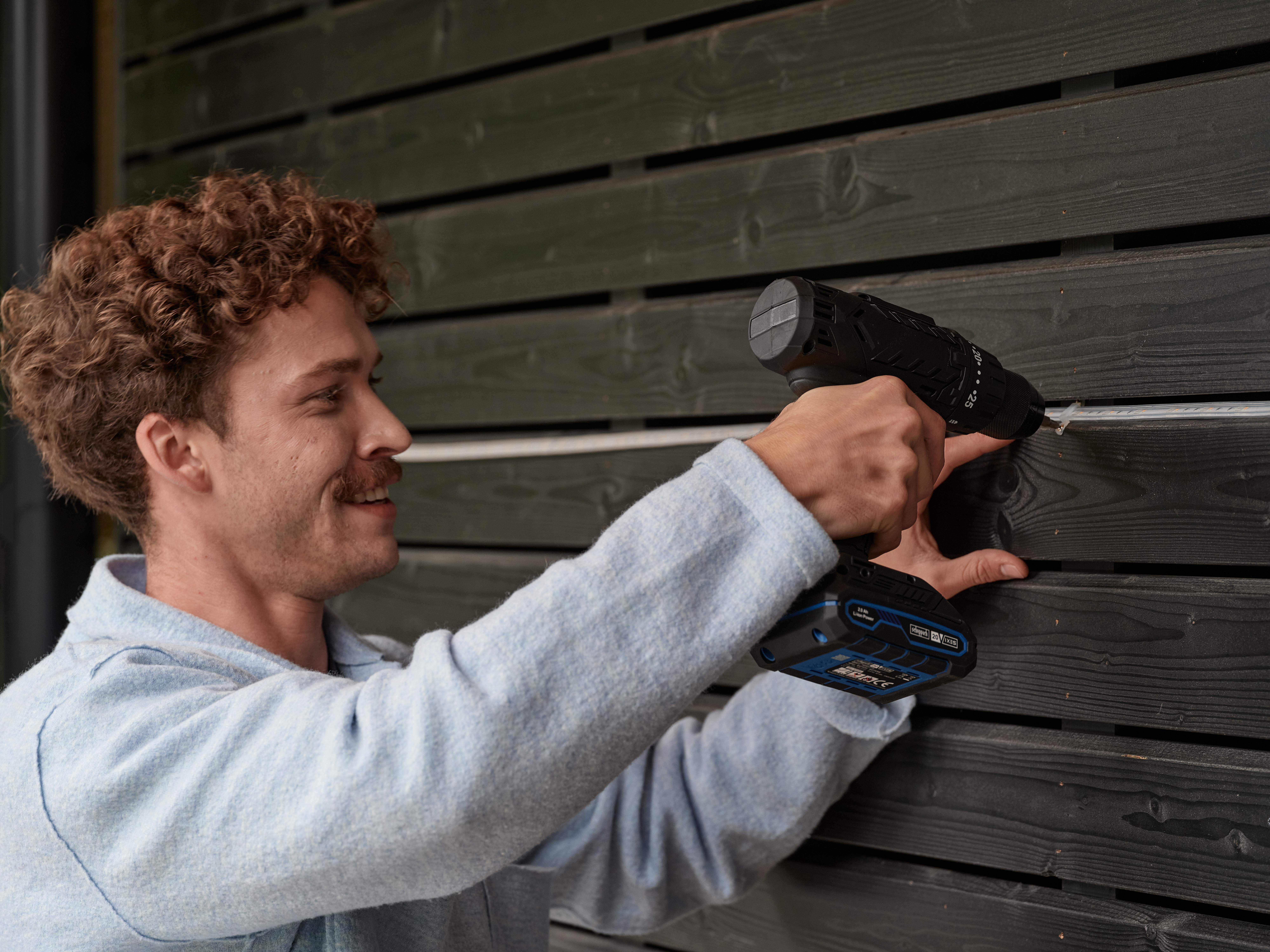

Application pictures
OSRAM FLEX Mounting 06
JPG (24.23 MB)

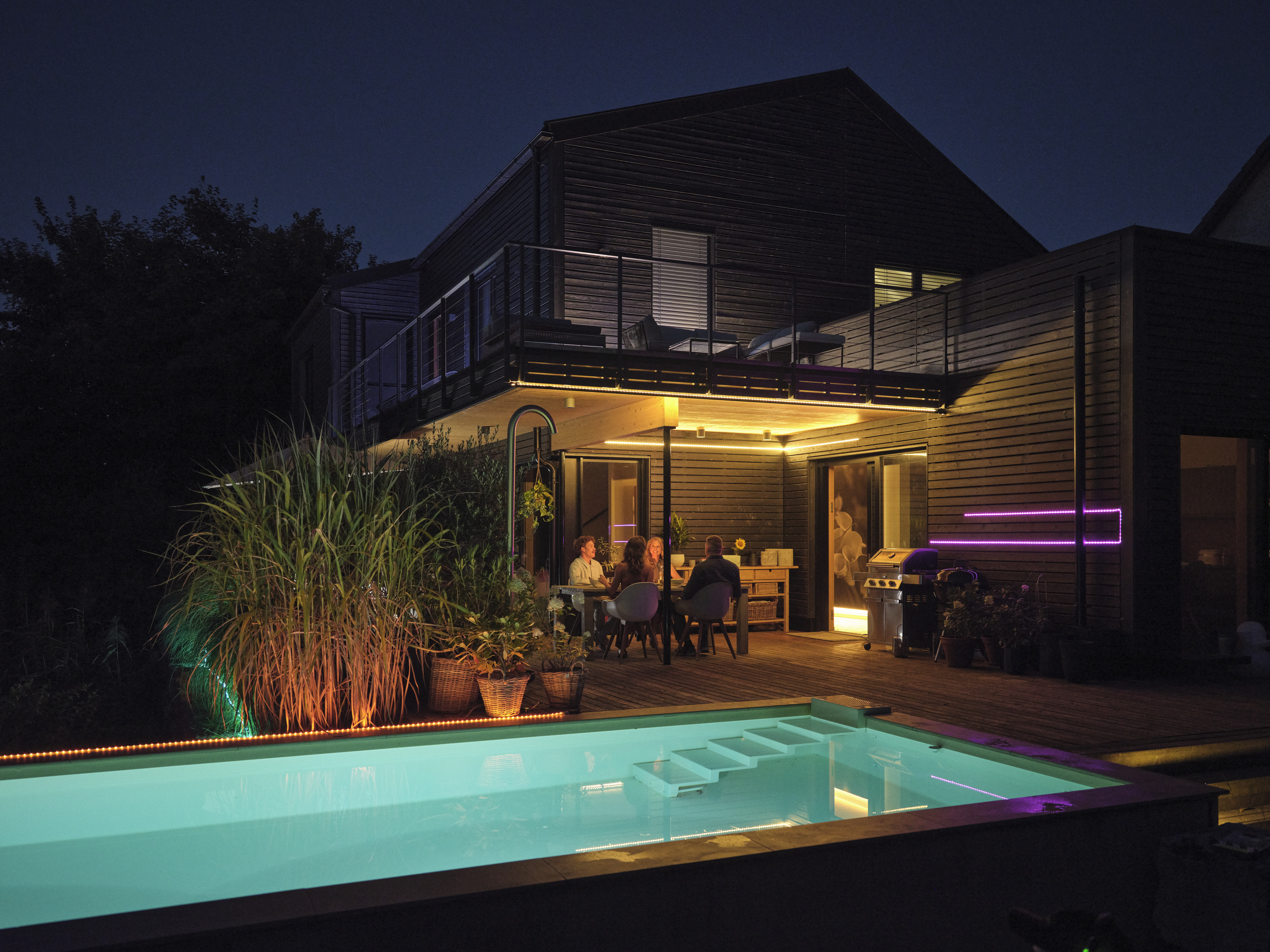

Application pictures
OSRAM FLEX OUTDOOR 02
JPG (17.77 MB)

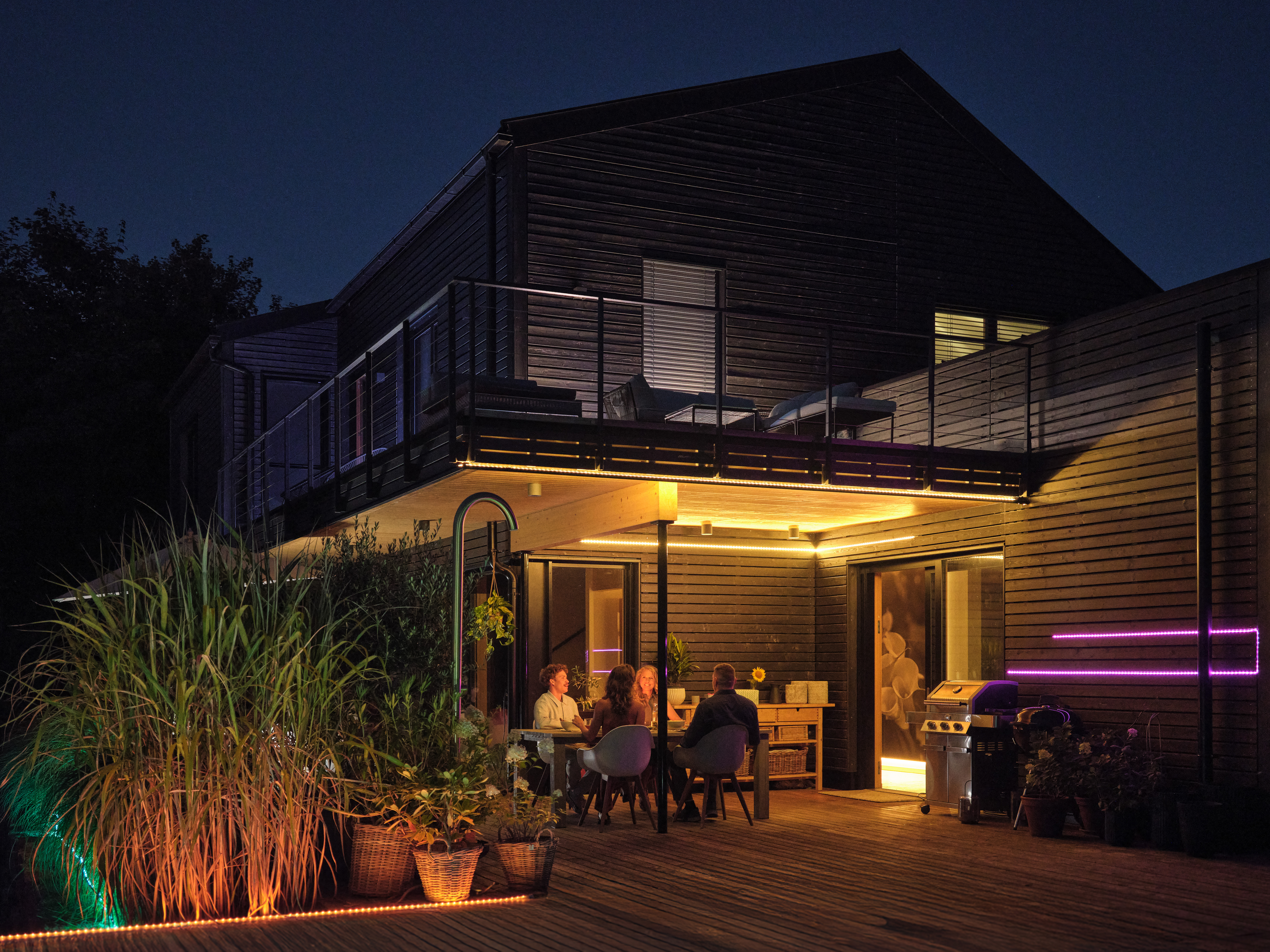

Application pictures
OSRAM FLEX OUTDOOR 07
JPG (35.54 MB)

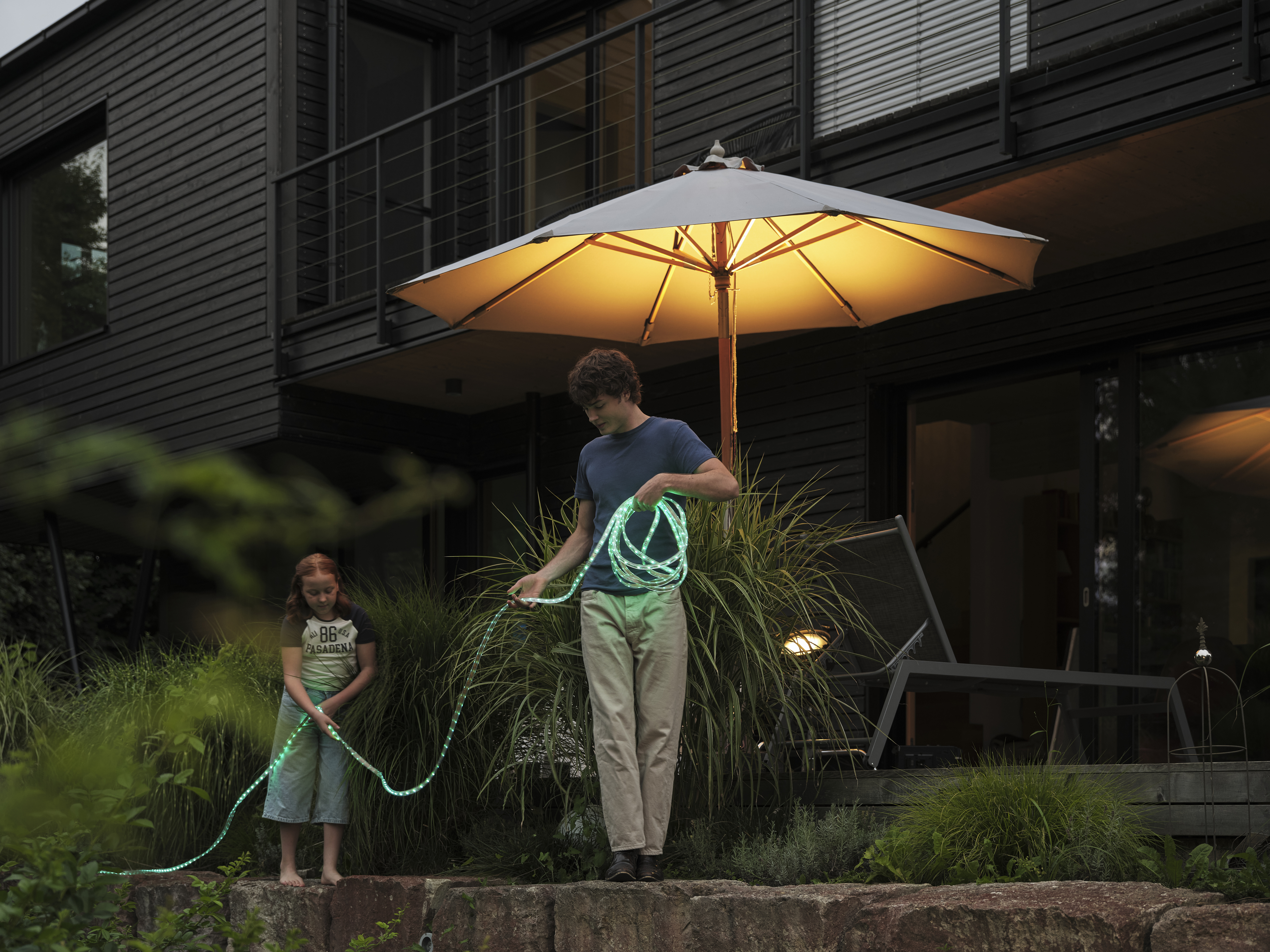

Application pictures
OSRAM OUTDOOR FLEX IP65 01
JPG (21.88 MB)

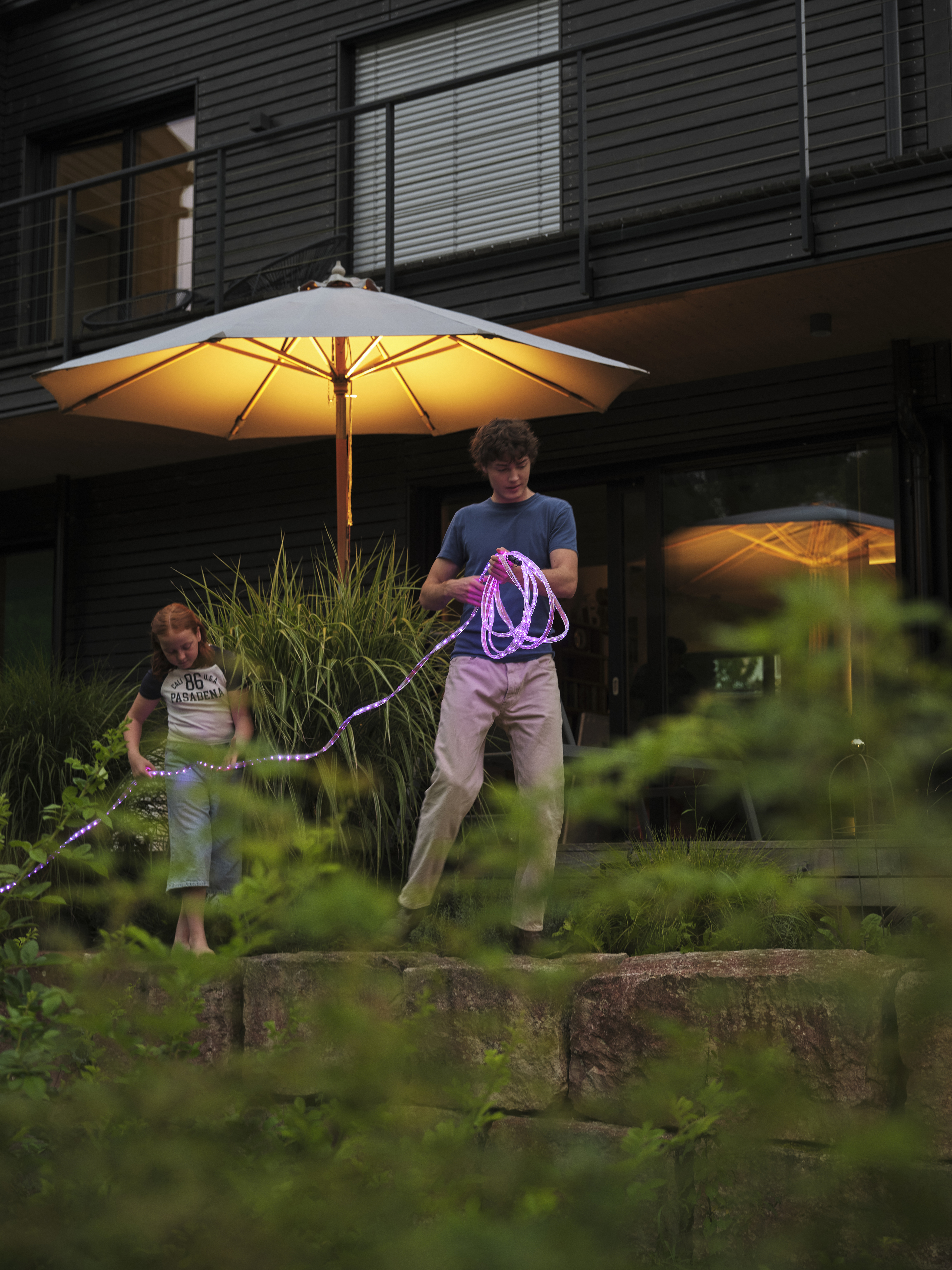

Application pictures
